S.G. Chemicals is a well-recognized manufacturing organization to develop H.T. Porcelain capacitor bushings. S.G Chemicals is the leading manufacturer of porcelain insulators mainly meant for using in the high–voltage capacitors. We are the innovators of Solderable Bushings and a state of the art technology for manufacturing them.

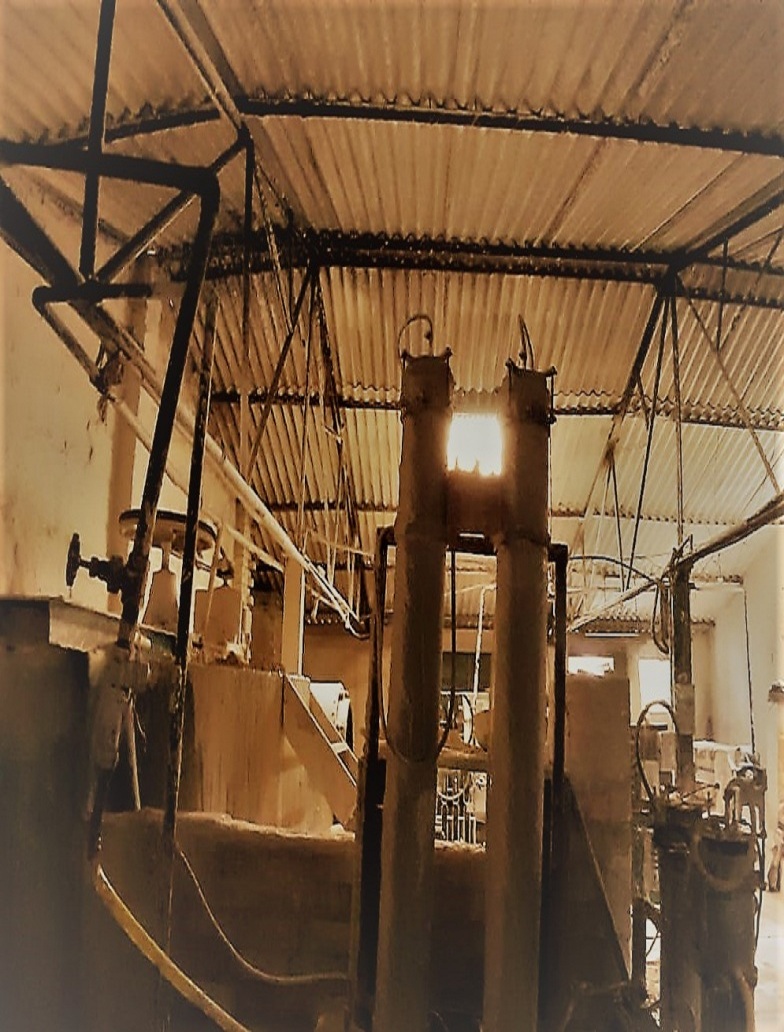

The company has invested in the manufacturing plant through facilities that are GMP compliant and ISO certified. This has facilitated our company to accomplish a leadership position in the ceramic-based capacitor bushing sector (Solderable, Weldable Combination categories).

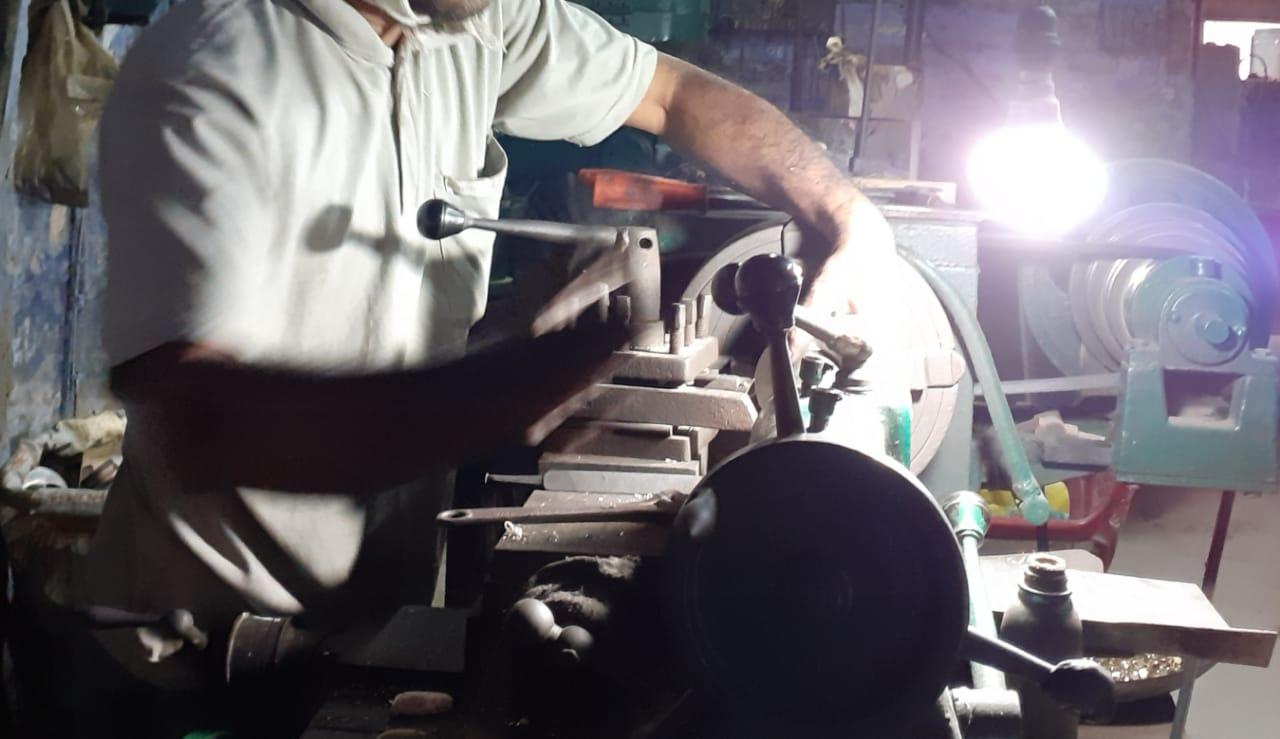

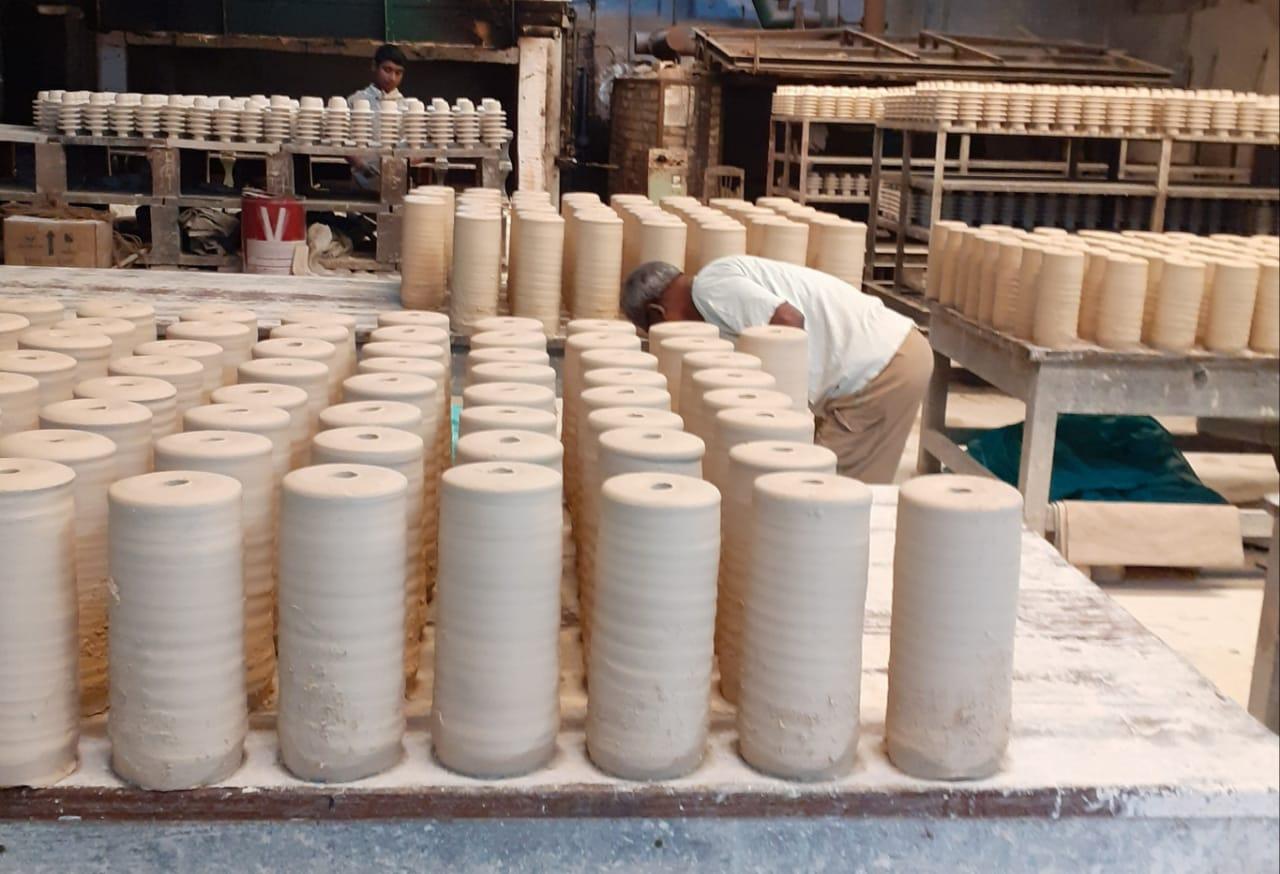

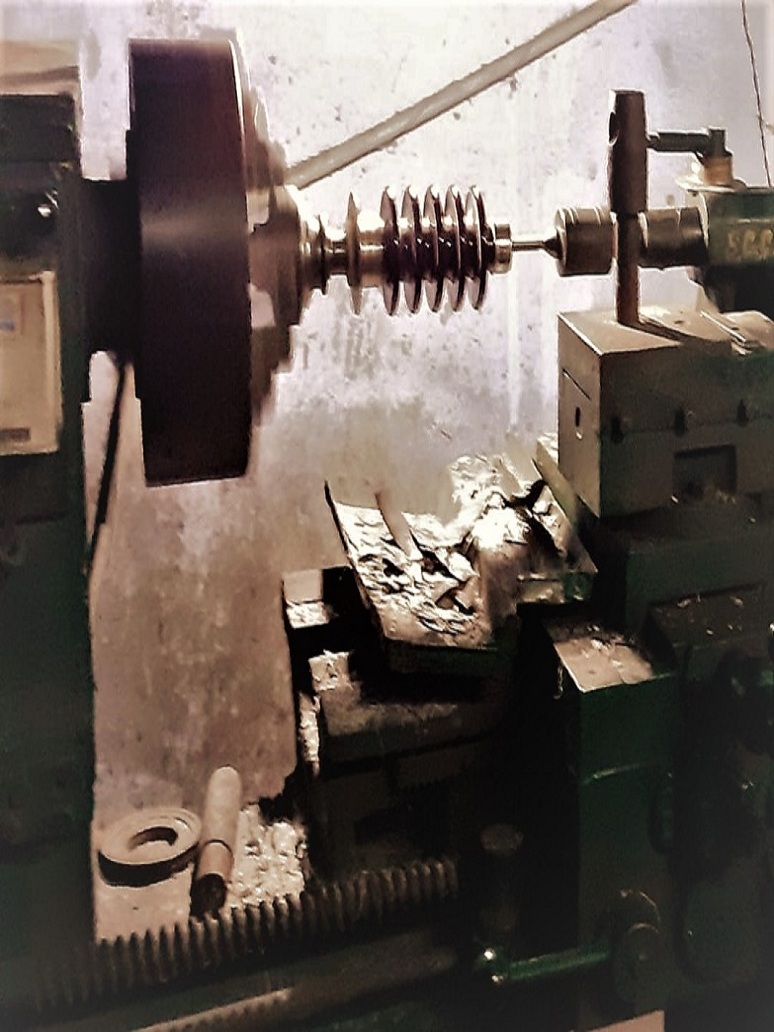

For the last 50 years, SGC has been catering to various capacitors manufacturing companies. At the beginning of this millennium, our company responded to the market demands by developing Weldable Bushings and also a combined module of Solderable – Weldable. These products are being regularly produced in our factories and delivered to customers since then. All SGC manufacturing facilities are equipped with most advanced machineries that constantly produced high quality products with flexible design. SGC provides tailor-made solutions for every client. Most significantly we ensure the best lead-time in industries with proven track record.
Tell Us What Are You Looking For ?
Our Offerings

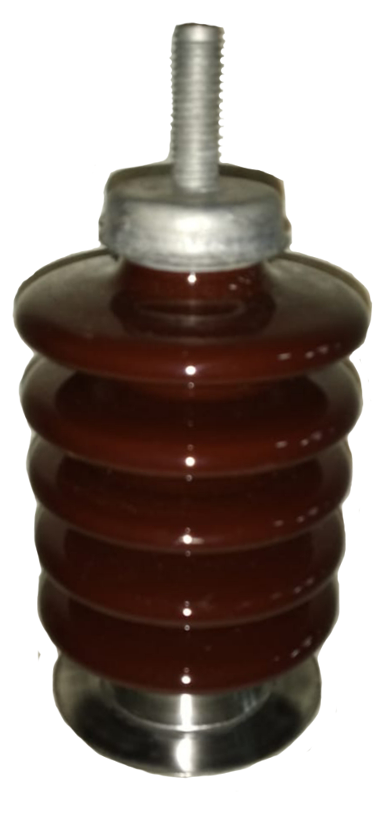

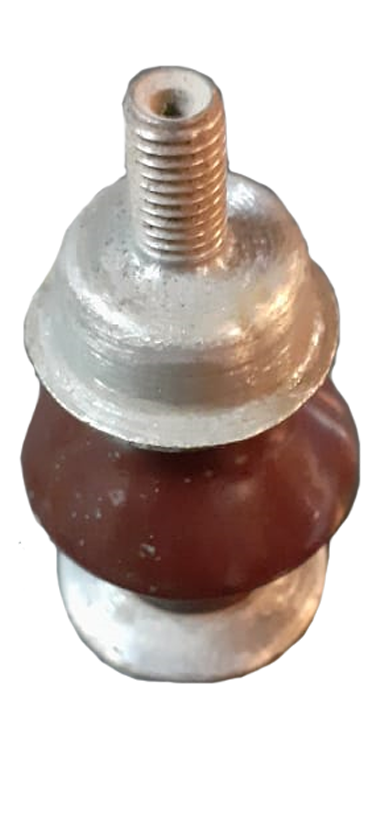

SGC offers a most comprehensive range of H.T Capacitors Bushings with a lifetime guarantee. Flexible design, extra high mechanical strength extended high creepage distance, high electrical stable are few key features of our product. We are the manufacturer & supplier of all sorts of weldable, solderable, combination bushings. The designs are further customized according to the customer’s needs. We also developed a special type of sloping solderable bushing with standard brass ring fixed at the bottom.
We gained field experience by working with various capacitor manufacturers of India. This unique know-how enables us for providing solutions to customers for a wide range of voltages.

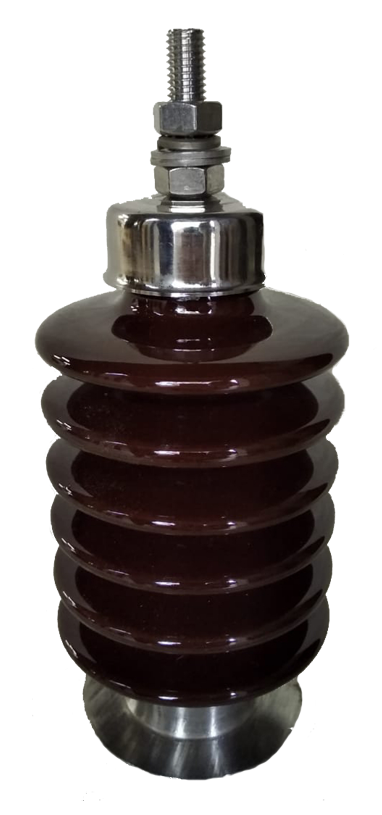

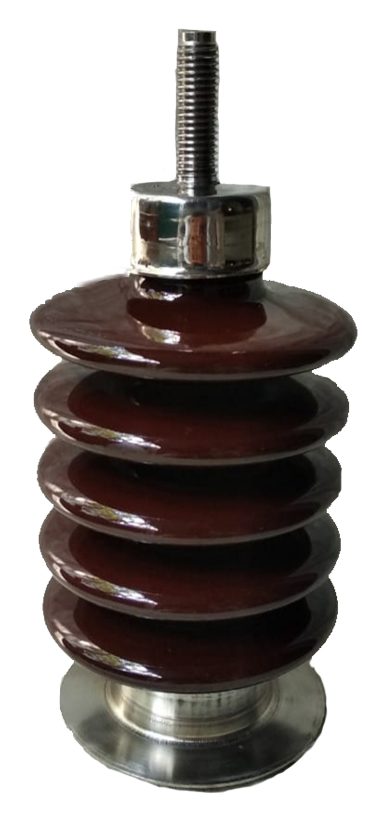

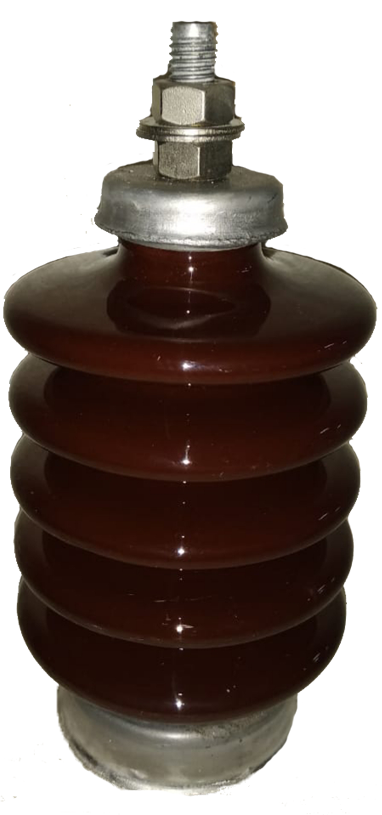

Rated voltage of our product vary from 1.1 kV to 33/36 kV. Skirts are of 2 types- Tappered and Straight. Glaze color are also of 2 types- Grey and Brown.

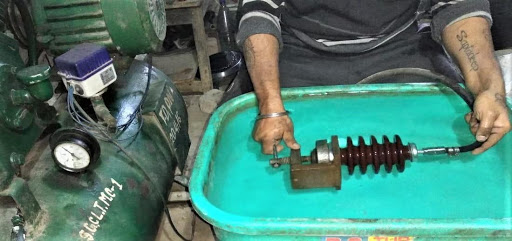

Products include non-condenser type hermetically sealed parcelain bushing in a wide range of voltage (1.1 kV to 36kV) with extensive range of BIL (basic insulation level) under international regulations. Bushings comply with environmental regulations.

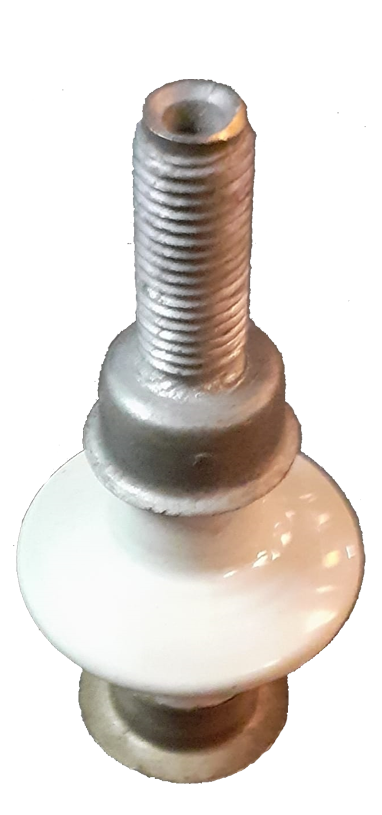

Bushings are supplied with mainly hollow stud so that copper flexible wire can be soldered or brazed by the Capacitor Manufacture or with soiled stud with prefixed copper wires.
Connection – top cap and stud Brass/SS, M 12 , M 14, M 16, M 18 or as reqd.
Bottom Fixation – Brass /M.S /SS 304 /SS 409
Our another product is slanting solderable bushing where bottom fixation is slanting brass ring.
BUSHING SPECIFICATION – I.S. 2099 – 1986
